Detailes of

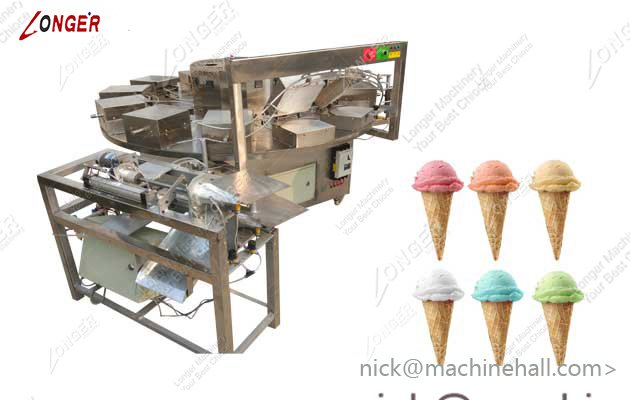

ice cream cone baking machine (14 models )
(1) Descriptions :
1. Automatic wafer baking oven:Equiped with Touch-screen and programmed by Siemens . PLC Software ,this unit is of LPG to generate the heat energy to make ice cream cone
2. The equipment is easy to operate which with automatic temperature control ,lighting to finish the baking process.
(2) Main Technical Parameter:
1. No. of Heating Plates :14
2. Baking Plates Size :470x325mm
3. Patterns of plates :Cone or Cup shape
4. Output :up to 30~35 Pieces /min
5. Material :Shell adopts 304 Stainless Steel ,Siemens of Mitsubishi to control ,SKF high temperature bearing , SEW Motor ,Italy Buring Systerms.
6. Material of Baking Plates:Gray Cast Iron ,Special Steel ,Copper .
7. Thick of the biscuit :2.0mm~3.0mm
8. Baking Plates temperature adjustable :Normal temperature to 200
9. Inside Baking Cleaning device
10. Dimension :3600x900x2000mm
(3) Prefect After-sales
1. one year guarantee
2. our technical staff will install the machine fo the client when the machine arrive the clients' place
3. we will help the client solve the machine problem in the future time
